sigsys

Signals and Systems Function Module

Copyright (c) March 2017, Mark Wickert All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

The views and conclusions contained in the software and documentation are those of the authors and should not be interpreted as representing official policies, either expressed or implied, of the FreeBSD Project.

Notes

The primary purpose of this function library is to support the book Signals and Systems for Dummies. Beyond that it should be useful to anyone who wants to use Pylab for general signals and systems modeling and simulation. There is a good collection of digital communication simulation primitives included in the library. More enhancements are planned over time.

The formatted docstrings for the library follow. Click index in the upper right to get an alphabetical listing of the library functions. In all of the example code given it is assumed that ssd has been imported into your workspace. See the examples below for import options.

Examples

>>> import sk_dsp_comm.sigsys as ssd
>>> # Commands then need to be prefixed with ssd., i.e.,
>>> ssd.tri(t,tau)
>>> # A full import of the module, to avoid the the need to prefix with ssd, is:
>>> from sk_dsp_comm.sigsys import *

Function Catalog

sk_dsp_comm.sigsys.am_rx(x192)

AM envelope detector receiver for the Chapter 17 Case Study

The receiver bandpass filter is not included in this function.

Parameters:

x192ndarray of the AM signal at sampling rate 192 ksps

Returns:

m_rx8ndarray of the demodulated message at 8 ksps

t8ndarray of the time axis at 8 ksps

m_rx192ndarray of the demodulated output at 192 ksps

x_edet192ndarray of the envelope detector output at 192 ksps

Notes

The bandpass filter needed at the receiver front-end can be designed using b_bpf,a_bpf = am_rx_BPF().

Examples

>>> import numpy as np
>>> n = np.arange(0,1000)
>>> # 1 kHz message signal
>>> m = np.cos(2*np.pi*1000/8000.*n)
>>> m_rx8,t8,m_rx192,x_edet192 = am_rx(x192)

sk_dsp_comm.sigsys.am_rx_bpf(n_order=7, ripple_dB=1, b=10000.0, fs=192000.0)

Bandpass filter design for the AM receiver Case Study of Chapter 17.

Design a 7th-order Chebyshev type 1 bandpass filter to remove/reduce adjacent channel intereference at the envelope detector input.

Parameters:

n_orderthe filter order (default = 7)

ripple_dBthe passband ripple in dB (default = 1)

bthe RF bandwidth (default = 10e3)

fsthe sampling frequency

Returns:

b_bpfndarray of the numerator filter coefficients

a_bpfndarray of the denominator filter coefficients

Examples

>>> from scipy import signal
>>> import numpy as np
>>> import matplotlib.pyplot as plt
>>> import sk_dsp_comm.sigsys as ss
>>> # Use the default values
>>> b_bpf,a_bpf = ss.am_rx_bpf()

Pole-zero plot of the filter.

>>> ss.zplane(b_bpf,a_bpf)
>>> plt.show()

(Source code)

Plot of the frequency response.

>>> f = np.arange(0,192/2.,.1)
>>> w, Hbpf = signal.freqz(b_bpf,a_bpf,2*np.pi*f/192)
>>> plt.plot(f*10,20*np.log10(abs(Hbpf)))
>>> plt.axis([0,1920/2.,-80,10])
>>> plt.ylabel("Power Spectral Density (dB)")
>>> plt.xlabel("Frequency (kHz)")
>>> plt.show()

sk_dsp_comm.sigsys.am_tx(m, a_mod, fc=75000.0)

AM transmitter for Case Study of Chapter 17.

Assume input is sampled at 8 Ksps and upsampling by 24 is performed to arrive at fs_out = 192 Ksps.

Parameters:

mndarray of the input message signal

a_modAM modulation index, between 0 and 1

fcthe carrier frequency in Hz

Returns:

x192ndarray of the upsampled by 24 and modulated carrier

t192ndarray of the upsampled by 24 time axis

m24ndarray of the upsampled by 24 message signal

Notes

The sampling rate of the input signal is assumed to be 8 kHz.

Examples

>>> n = arange(0,1000)
>>> # 1 kHz message signal
>>> m = cos(2*pi*1000/8000.*n)
>>> x192, t192 = am_tx(m,0.8,fc=75e3)

sk_dsp_comm.sigsys.bin_num(n, n_bits)

Produce a signed representation of the number n using n_bits.

Parameters:

• n – Number n

• n_bits – Number of bits

Returns:

sk_dsp_comm.sigsys.biquad2(w_num, r_num, w_den, r_den)

A biquadratic filter in terms of conjugate pole and zero pairs.

Parameters:

w_numzero frequency (angle) in rad/sample

r_numconjugate zeros radius

w_denpole frequency (angle) in rad/sample

r_denconjugate poles radius; less than 1 for stability

Returns:

bndarray of numerator coefficients

andarray of denominator coefficients

Examples

>>> b,a = biquad2(pi/4., 1, pi/4., 0.95)

sk_dsp_comm.sigsys.bit_errors(z, data, start, ns)

A simple bit error counting function.

In its present form this function counts bit errors between hard decision BPSK bits in +/-1 form and compares them with 0/1 binary data that was transmitted. Timing between the Tx and Rx data is the responsibility of the user. An enhanced version of this function, which features automatic synching will be created in the future.

Parameters:

zndarray of hard decision BPSK data prior to symbol spaced sampling

datandarray of reference bits in 1/0 format

starttiming reference for the received

nsthe number of samples per symbol

Returns:

Pe_hatthe estimated probability of a bit error

Notes

The Tx and Rx data streams are exclusive-or’d and the then the bit errors are summed, and finally divided by the number of bits observed to form an estimate of the bit error probability. This function needs to be enhanced to be more useful.

Examples

>>> from scipy import signal
>>> x,b, data = nrz_bits(1000,10)
>>> # set Eb/N0 to 8 dB
>>>  y = cpx_awgn(x,8,10)
>>> # matched filter the signal
>>> z = signal.lfilter(b,1,y)
>>> # make bit decisions at 10 and Ns multiples thereafter
>>> Pe_hat = bit_errors(z,data,10,10)

sk_dsp_comm.sigsys.bpsk_tx(N_bits, Ns, ach_fc=2.0, ach_lvl_dB=-100, pulse='rect', alpha=0.25, M=6)

Generates biphase shift keyed (BPSK) transmitter with adjacent channel interference.

Generates three BPSK signals with rectangular or square root raised cosine (SRC) pulse shaping of duration N_bits and Ns samples per bit. The desired signal is centered on f = 0, which the adjacent channel signals to the left and right are also generated at dB level relative to the desired signal. Used in the digital communications Case Study supplement.

Parameters:

N_bitsthe number of bits to simulate

Nsthe number of samples per bit

ach_fcthe frequency offset of the adjacent channel signals (default 2.0)

ach_lvl_dBthe level of the adjacent channel signals in dB (default -100)

pulse :the pulse shape ‘rect’ or ‘src’

alphasquare root raised cosine pulse shape factor (default = 0.25)

Msquare root raised cosine pulse truncation factor (default = 6)

Returns:

xndarray of the composite signal x0 + ach_lvl*(x1p + x1m)

bthe transmit pulse shape

data0the data bits used to form the desired signal; used for error checking

Examples

>>> x,b,data0 = bpsk_tx(1000,10,pulse='src')

sk_dsp_comm.sigsys.cascade_filters(b1, a1, b2, a2)

Cascade two IIR digital filters into a single (b,a) coefficient set.

To cascade two digital filters (system functions) given their numerator and denominator coefficients you simply convolve the coefficient arrays.

Parameters:

b1ndarray of numerator coefficients for filter 1

a1ndarray of denominator coefficients for filter 1

b2ndarray of numerator coefficients for filter 2

a2ndarray of denominator coefficients for filter 2

Returns:

bndarray of numerator coefficients for the cascade

andarray of denominator coefficients for the cascade

Examples

>>> from scipy import signal
>>> b1,a1 = signal.butter(3, 0.1)
>>> b2,a2 = signal.butter(3, 0.15)
>>> b,a = cascade_filters(b1,a1,b2,a2)

sk_dsp_comm.sigsys.cic(m, k)

A functional form implementation of a cascade of integrator comb (CIC) filters.

Parameters:

mEffective number of taps per section (typically the decimation factor).

kThe number of CIC sections cascaded (larger K gives the filter a wider image rejection bandwidth).

Returns:

bFIR filter coefficients for a simple direct form implementation using the filter() function.

Notes

Commonly used in multirate signal processing digital down-converters and digital up-converters. A true CIC filter requires no multiplies, only add and subtract operations. The functional form created here is a simple FIR requiring real coefficient multiplies via filter().

Mark Wickert July 2013

sk_dsp_comm.sigsys.conv_integral(x1, tx1, x2, tx2, extent=('f', 'f'))

Continuous-time convolution of x1 and x2 with proper tracking of the output time axis.

Appromimate the convolution integral for the convolution of two continuous-time signals using the SciPy function signal. The time (sequence axis) are managed from input to output. y(t) = x1(t)*x2(t).

Parameters:

x1ndarray of signal x1 corresponding to tx1

tx1ndarray time axis for x1

x2ndarray of signal x2 corresponding to tx2

tx2ndarray time axis for x2

extent(‘e1’,’e2’) where ‘e1’, ‘e2’ may be ‘f’ finite, ‘r’ right-sided, or ‘l’ left-sided

Returns:

yndarray of output values y

tyndarray of the corresponding time axis for y

Notes

The output time axis starts at the sum of the starting values in x1 and x2 and ends at the sum of the two ending values in x1 and x2. The time steps used in x1(t) and x2(t) must match. The default extents of (‘f’,’f’) are used for signals that are active (have support) on or within t1 and t2 respectively. A right-sided signal such as exp(-a*t)*u(t) is semi-infinite, so it has extent ‘r’ and the convolution output will be truncated to display only the valid results.

Examples

>>> import matplotlib.pyplot as plt
>>> import numpy as np
>>> import sk_dsp_comm.sigsys as ss
>>> tx = np.arange(-5,10,.01)
>>> x = ss.rect(tx-2,4) # pulse starts at t = 0
>>> y,ty = ss.conv_integral(x,tx,x,tx)
>>> plt.plot(ty,y) # expect a triangle on [0,8]
>>> plt.show()

(Source code)

Now, consider a pulse convolved with an exponential.

>>> h = 4*np.exp(-4*tx)*ss.step(tx)
>>> y,ty = ss.conv_integral(x,tx,h,tx,extent=('f','r')) # note extents set
>>> plt.plot(ty,y) # expect a pulse charge and discharge waveform

sk_dsp_comm.sigsys.conv_sum(x1, nx1, x2, nx2, extent=('f', 'f'))

Discrete convolution of x1 and x2 with proper tracking of the output time axis.

Convolve two discrete-time signals using the SciPy function scipy.signal.convolution(). The time (sequence axis) are managed from input to output. y[n] = x1[n]*x2[n].

Parameters:

x1ndarray of signal x1 corresponding to nx1

nx1ndarray time axis for x1

x2ndarray of signal x2 corresponding to nx2

nx2ndarray time axis for x2

extent(‘e1’,’e2’) where ‘e1’, ‘e2’ may be ‘f’ finite, ‘r’ right-sided, or ‘l’ left-sided

Returns:

yndarray of output values y

nyndarray of the corresponding sequence index n

Notes

The output time axis starts at the sum of the starting values in x1 and x2 and ends at the sum of the two ending values in x1 and x2. The default extents of (‘f’,’f’) are used for signals that are active (have support) on or within n1 and n2 respectively. A right-sided signal such as a^n*u[n] is semi-infinite, so it has extent ‘r’ and the convolution output will be truncated to display only the valid results.

Examples

>>> import matplotlib.pyplot as plt
>>> import numpy as np
>>> import sk_dsp_comm.sigsys as ss
>>> nx = np.arange(-5,10)
>>> x = ss.drect(nx,4)
>>> y,ny = ss.conv_sum(x,nx,x,nx)
>>> plt.stem(ny,y)
>>> plt.show()

(Source code)

Consider a pulse convolved with an exponential. (‘r’ type extent)

>>> h = 0.5**nx*ss.dstep(nx)
>>> y,ny = ss.conv_sum(x,nx,h,nx,('f','r')) # note extents set
>>> plt.stem(ny,y) # expect a pulse charge and discharge sequence

sk_dsp_comm.sigsys.cpx_awgn(x, es_n0, ns)

Apply white Gaussian noise to a digital communications signal.

This function represents a complex baseband white Gaussian noise digital communications channel. The input signal array may be real or complex.

Parameters:

xndarray noise free complex baseband input signal.

EsNOset the channel Es/N0 (Eb/N0 for binary) level in dB

nsnumber of samples per symbol (bit)

Returns:

yndarray x with additive noise added.

Notes

Set the channel energy per symbol-to-noise power spectral density ratio (Es/N0) in dB.

Examples

>>> x,b, data = nrz_bits(1000,10)
>>> # set Eb/N0 = 10 dB
>>> y = cpx_awgn(x,10,10)

sk_dsp_comm.sigsys.cruise_control(wn, zeta, T, vcruise, vmax, tf_mode='H')

Cruise control with PI controller and hill disturbance.

This function returns various system function configurations for a the cruise control Case Study example found in the supplementary article. The plant model is obtained by the linearizing the equations of motion and the controller contains a proportional and integral gain term set via the closed-loop parameters natural frequency wn (rad/s) and damping zeta.

Parameters:

wnclosed-loop natural frequency in rad/s, nominally 0.1

zetaclosed-loop damping factor, nominally 1.0

Tvehicle time constant, nominally 10 s

vcruisecruise velocity set point, nominally 75 mph

vmaxmaximum vehicle velocity, nominally 120 mph

tf_mode‘H’, ‘HE’, ‘HVW’, or ‘HED’ controls the system function returned by the function

‘H’closed-loop system function V(s)/R(s)

‘HE’closed-loop system function E(s)/R(s)

‘HVW’closed-loop system function V(s)/W(s)

‘HED’closed-loop system function E(s)/D(s), where D is the hill disturbance input

Returns:

bnumerator coefficient ndarray

adenominator coefficient ndarray

Examples

>>> # return the closed-loop system function output/input velocity
>>> b,a = cruise_control(wn,zeta,T,vcruise,vmax,tf_mode='H')
>>> # return the closed-loop system function loop error/hill disturbance
>>> b,a = cruise_control(wn,zeta,T,vcruise,vmax,tf_mode='HED')

sk_dsp_comm.sigsys.deci24(x)

Decimate by L = 24 using Butterworth filters.

The decimation is done using two three stages. Downsample sample by L = 2 and lowpass filter, downsample by 3 and lowpass filter, then downsample by L = 4 and lowpass filter. In all cases the lowpass filter is a 10th-order Butterworth lowpass.

Parameters:

xndarray of the input signal

Returns:

yndarray of the output signal

Notes

The cutoff frequency of the lowpass filters is 1/2, 1/3, and 1/4 to track the upsampling by 2, 3, and 4 respectively.

Examples

>>> y = deci24(x)

sk_dsp_comm.sigsys.delta_eps(t, eps)

Rectangular pulse approximation to impulse function.

Parameters:

tndarray of time axis

epspulse width

Returns:

dndarray containing the impulse approximation

Examples

>>> import matplotlib.pyplot as plt
>>> from numpy import arange
>>> from sk_dsp_comm.sigsys import delta_eps
>>> t = np.arange(-2,2,.001)
>>> d = delta_eps(t,.1)
>>> plt.plot(t,d)
>>> plt.show()

(Source code)

sk_dsp_comm.sigsys.dimpulse(n)

Discrete impulse function delta[n].

Parameters:

nndarray of the time axis

Returns:

xndarray of the signal delta[n]

Examples

>>> import matplotlib.pyplot as plt
>>> from numpy import arange
>>> from sk_dsp_comm.sigsys import dimpulse
>>> n = arange(-5,5)
>>> x = dimpulse(n)
>>> plt.stem(n,x)
>>> plt.show()

(Source code)

Shift the delta left by 2.

>>> x = dimpulse(n+2)
>>> plt.stem(n,x)

sk_dsp_comm.sigsys.downsample(x, M, p=0)

Downsample by factor M

Keep every Mth sample of the input. The phase of the input samples kept can be selected.

Parameters:

xndarray of input signal values

Mdownsample factor

pphase of decimated value, 0 (default), 1, …, M-1

Returns:

yndarray of the output signal values

Examples

>>> y = downsample(x,3)
>>> y = downsample(x,3,1)

sk_dsp_comm.sigsys.drect(n, N)

Discrete rectangle function of duration N samples.

The signal is active on the interval 0 <= n <= N-1. Also known as the rectangular window function, which is available in scipy.signal.

Parameters:

nndarray of the time axis

Nthe pulse duration

Returns:

xndarray of the signal

Notes

The discrete rectangle turns on at n = 0, off at n = N-1 and has duration of exactly N samples.

Examples

>>> import matplotlib.pyplot as plt
>>> from numpy import arange
>>> from sk_dsp_comm.sigsys import drect
>>> n = arange(-5,5)
>>> x = drect(n, N=3)
>>> plt.stem(n,x)
>>> plt.show()

(Source code)

Shift the delta left by 2.

>>> x = drect(n+2, N=3)
>>> plt.stem(n,x)

sk_dsp_comm.sigsys.dstep(n)

Discrete step function u[n].

Parameters:

nndarray of the time axis

Returns:

xndarray of the signal u[n]

Examples

>>> import matplotlib.pyplot as plt
>>> from numpy import arange
>>> from sk_dsp_comm.sigsys import dstep
>>> n = arange(-5,5)
>>> x = dstep(n)
>>> plt.stem(n,x)
>>> plt.show()

(Source code)

Shift the delta left by 2.

>>> x = dstep(n+2)
>>> plt.stem(n,x)

sk_dsp_comm.sigsys.env_det(x)

Ideal envelope detector.

This function retains the positive half cycles of the input signal.

Parameters:

xndarray of the input sugnal

Returns:

yndarray of the output signal

Examples

>>> n = arange(0,100)
>>> # 1 kHz message signal
>>> m = cos(2*pi*1000/8000.*n)
>>> x192, t192, m24 = am_tx(m,0.8,fc=75e3)
>>> y = env_det(x192)

sk_dsp_comm.sigsys.ex6_2(n)

Generate a triangle pulse as described in Example 6-2 of Chapter 6.

You need to supply an index array n that covers at least [-2, 5]. The function returns the hard-coded signal of the example.

Parameters:

ntime index ndarray covering at least -2 to +5.

Returns:

xndarray of signal samples in x

Examples

>>> import numpy as np
>>> import matplotlib.pyplot as plt
>>> from sk_dsp_comm import sigsys as ss
>>> n = np.arange(-5,8)
>>> x = ss.ex6_2(n)
>>> plt.stem(n,x) # creates a stem plot of x vs n

(Source code)

sk_dsp_comm.sigsys.eye_plot(x, l, s=0)

Eye pattern plot of a baseband digital communications waveform.

The signal must be real, but can be multivalued in terms of the underlying modulation scheme. Used for BPSK eye plots in the Case Study article.

Parameters:

xndarray of the real input data vector/array

ldisplay length in samples (usually two symbols)

sstart index

Returns:

NothingA plot window opens containing the eye plot

Notes

Increase S to eliminate filter transients.

Examples

1000 bits at 10 samples per bit with ‘rc’ shaping.

>>> import matplotlib.pyplot as plt
>>> from sk_dsp_comm import sigsys as ss
>>> x,b, data = ss.nrz_bits(1000,10,'rc')
>>> ss.eye_plot(x,20,60)

(Source code)

sk_dsp_comm.sigsys.fir_iir_notch(fi, fs, r=0.95)

Design a second-order FIR or IIR notch filter.

A second-order FIR notch filter is created by placing conjugate zeros on the unit circle at angle corresponidng to the notch center frequency. The IIR notch variation places a pair of conjugate poles at the same angle, but with radius r < 1 (typically 0.9 to 0.95).

Parameters:

finotch frequency is Hz relative to fs

fsthe sampling frequency in Hz, e.g. 8000

rpole radius for IIR version, default = 0.95

Returns:

bnumerator coefficient ndarray

adenominator coefficient ndarray

Notes

If the pole radius is 0 then an FIR version is created, that is there are no poles except at z = 0.

Examples

>>> import matplotlib.pyplot as plt
>>> from sk_dsp_comm import sigsys as ss

>>> b_FIR, a_FIR = ss.fir_iir_notch(1000,8000,0)
>>> ss.zplane(b_FIR, a_FIR)
>>> plt.show()

(Source code)

>>> b_IIR, a_IIR = ss.fir_iir_notch(1000,8000)
>>> ss.zplane(b_IIR, a_IIR)

sk_dsp_comm.sigsys.from_wav(filename)

Read a wave file.

A wrapper function for scipy.io.wavfile.read that also includes int16 to float [-1,1] scaling.

Parameters:

filenamefile name string

Returns:

fssampling frequency in Hz

xndarray of normalized to 1 signal samples

Examples

>>> fs,x = from_wav('test_file.wav')

sk_dsp_comm.sigsys.fs_approx(Xk, fk, t)

Synthesize periodic signal x(t) using Fourier series coefficients at harmonic frequencies

Assume the signal is real so coefficients Xk are supplied for nonnegative indicies. The negative index coefficients are assumed to be complex conjugates.

Parameters:

Xkndarray of complex Fourier series coefficients

fkndarray of harmonic frequencies in Hz

tndarray time axis corresponding to output signal array x_approx

Returns:

x_approxndarray of periodic waveform approximation over time span t

Examples

>>> t = arange(0,2,.002)
>>> # a 20% duty cycle pulse train
>>> n = arange(0,20,1) # 0 to 19th harmonic
>>> fk = 1*n % period = 1s
>>> t, x_approx = fs_approx(Xk,fk,t)
>>> plot(t,x_approx)

sk_dsp_comm.sigsys.fs_coeff(xp, N, f0, one_side=True)

Numerically approximate the Fourier series coefficients given periodic x(t).

The input is assummed to represent one period of the waveform x(t) that has been uniformly sampled. The number of samples supplied to represent one period of the waveform sets the sampling rate.

Parameters:

xpndarray of one period of the waveform x(t)

Nmaximum Fourier series coefficient, [0,…,N]

f0fundamental frequency used to form fk.

Returns:

Xkndarray of the coefficients over indices [0,1,…,N]

fkndarray of the harmonic frequencies [0, f0,2f0,…,Nf0]

Notes

len(xp) >= 2*N+1 as len(xp) is the fft length.

Examples

>>> import matplotlib.pyplot as plt
>>> from numpy import arange
>>> import sk_dsp_comm.sigsys as ss
>>> t = arange(0,1,1/1024.)
>>> # a 20% duty cycle pulse starting at t = 0
>>> x_rect = ss.rect(t-.1,0.2)
>>> Xk, fk = ss.fs_coeff(x_rect,25,10)
>>> # plot the spectral lines
>>> ss.line_spectra(fk,Xk,'mag')
>>> plt.show()

(Source code)

sk_dsp_comm.sigsys.ft_approx(x, t, Nfft)

Approximate the Fourier transform of a finite duration signal using scipy.signal.freqz()

Parameters:

xinput signal array

ttime array used to create x(t)

Nfftthe number of frdquency domain points used to

approximate X(f) on the interval [fs/2,fs/2], where fs = 1/Dt. Dt being the time spacing in array t

Returns:

ffrequency axis array in Hz

Xthe Fourier transform approximation (complex)

Notes

The output time axis starts at the sum of the starting values in x1 and x2 and ends at the sum of the two ending values in x1 and x2. The default extents of (‘f’,’f’) are used for signals that are active (have support) on or within n1 and n2 respectively. A right-sided signal such as \(a^n*u[n]\) is semi-infinite, so it has extent ‘r’ and the convolution output will be truncated to display only the valid results.

Examples

>>> import matplotlib.pyplot as plt
>>> import numpy as np
>>> import sk_dsp_comm.sigsys as ss
>>> fs = 100 # sampling rate in Hz
>>> tau = 1
>>> t = np.arange(-5,5,1/fs)
>>> x0 = ss.rect(t-.5,tau)
>>> plt.figure(figsize=(6,5))
>>> plt.plot(t,x0)
>>> plt.grid()
>>> plt.ylim([-0.1,1.1])
>>> plt.xlim([-2,2])
>>> plt.title(r'Exact Waveform')
>>> plt.xlabel(r'Time (s)')
>>> plt.ylabel(r'$x_0(t)$')
>>> plt.show()

(Source code)

>>> # FT Exact Plot
>>> import matplotlib.pyplot as plt
>>> import numpy as np
>>> import sk_dsp_comm.sigsys as ss
>>> fs = 100 # sampling rate in Hz
>>> tau = 1
>>> t = np.arange(-5,5,1/fs)
>>> x0 = ss.rect(t-.5,tau)
>>> fe = np.arange(-10,10,.01)
>>> X0e = tau*np.sinc(fe*tau)
>>> plt.plot(fe,abs(X0e))
>>> #plot(f,angle(X0))
>>> plt.grid()
>>> plt.xlim([-10,10])
>>> plt.title(r'Exact (Theory) Spectrum Magnitude')
>>> plt.xlabel(r'Frequency (Hz)')
>>> plt.ylabel(r'$|X_0e(f)|$')
>>> plt.show()

>>> # FT Approximation Plot
>>> import matplotlib.pyplot as plt
>>> import numpy as np
>>> import sk_dsp_comm.sigsys as ss
>>> fs = 100 # sampling rate in Hz
>>> tau = 1
>>> t = np.arange(-5,5,1/fs)
>>> x0 = ss.rect(t-.5,tau)
>>> f,X0 = ss.ft_approx(x0,t,4096)
>>> plt.plot(f,abs(X0))
>>> #plt.plot(f,angle(X0))
>>> plt.grid()
>>> plt.xlim([-10,10])
>>> plt.title(r'Approximation Spectrum Magnitude')
>>> plt.xlabel(r'Frequency (Hz)')
>>> plt.ylabel(r'$|X_0(f)|$');
>>> plt.tight_layout()
>>> plt.show()

sk_dsp_comm.sigsys.interp24(x)

Interpolate by L = 24 using Butterworth filters.

The interpolation is done using three stages. Upsample by L = 2 and lowpass filter, upsample by 3 and lowpass filter, then upsample by L = 4 and lowpass filter. In all cases the lowpass filter is a 10th-order Butterworth lowpass.

Parameters:

xndarray of the input signal

Returns:

yndarray of the output signal

Notes

The cutoff frequency of the lowpass filters is 1/2, 1/3, and 1/4 to track the upsampling by 2, 3, and 4 respectively.

Examples

>>> y = interp24(x)

sk_dsp_comm.sigsys.line_spectra(fk, Xk, mode, sides=2, linetype='b', lwidth=2, floor_dB=-100, fsize=(6, 4))

Plot the Fourier series line spectral given the coefficients.

This function plots two-sided and one-sided line spectra of a periodic signal given the complex exponential Fourier series coefficients and the corresponding harmonic frequencies.

Parameters:

fkvector of real sinusoid frequencies

Xkmagnitude and phase at each positive frequency in fk

mode‘mag’ => magnitude plot, ‘magdB’ => magnitude in dB plot,

mode cont‘magdBn’ => magnitude in dB normalized, ‘phase’ => a phase plot in radians

sides2; 2-sided or 1-sided

linetypeline type per Matplotlib definitions, e.g., ‘b’;

lwidth2; linewidth in points

fsizeoptional figure size in inches, default = (6,4) inches

Returns:

NothingA plot window opens containing the line spectrum plot

Notes

Since real signals are assumed the frequencies of fk are 0 and/or positive numbers. The supplied Fourier coefficients correspond.

Examples

>>> import matplotlib.pyplot as plt
>>> import numpy as np
>>> from sk_dsp_comm.sigsys import line_spectra
>>> n = np.arange(0,25)
>>> # a pulse train with 10 Hz fundamental and 20% duty cycle
>>> fk = n*10
>>> Xk = np.sinc(n*10*.02)*np.exp(-1j*2*np.pi*n*10*.01) # 1j = sqrt(-1)

>>> line_spectra(fk,Xk,'mag')
>>> plt.show()

(Source code)

>>> line_spectra(fk,Xk,'phase')

sk_dsp_comm.sigsys.lms_ic(r, M, mu, delta=1)

Least mean square (LMS) interference canceller adaptive filter.

A complete LMS adaptive filter simulation function for the case of interference cancellation. Used in the digital filtering case study.

Parameters:

MFIR Filter length (order M-1)

deltaDelay used to generate the reference signal

muLMS step-size

deltadecorrelation delay between input and FIR filter input

Returns:

nndarray Index vector

rndarray noisy (with interference) input signal

r_hatndarray filtered output (NB_hat[n])

endarray error sequence (WB_hat[n])

aondarray final value of weight vector

Fndarray frequency response axis vector

Aondarray frequency response of filter

Examples

>>> # import a speech signal
>>> fs,s = from_wav('OSR_us_000_0030_8k.wav')
>>> # add interference at 1kHz and 1.5 kHz and
>>> # truncate to 5 seconds
>>> r = soi_snoi_gen(s,10,5*8000,[1000, 1500])
>>> # simulate with a 64 tap FIR and mu = 0.005
>>> n,r,r_hat,e,ao,F,Ao = lms_ic(r,64,0.005)

sk_dsp_comm.sigsys.lp_samp(fb, fs, fmax, N, shape='tri', fsize=(6, 4))

Lowpass sampling theorem plotting function.

Display the spectrum of a sampled signal after setting the bandwidth, sampling frequency, maximum display frequency, and spectral shape.

Parameters:

fbspectrum lowpass bandwidth in Hz

fssampling frequency in Hz

fmaxplot over [-fmax,fmax]

shape‘tri’ or ‘line’

Nnumber of translates, N positive and N negative

fsizethe size of the figure window, default (6,4)

Returns:

NothingA plot window opens containing the spectrum plot

Examples

>>> import matplotlib.pyplot as plt
>>> from sk_dsp_comm.sigsys import lp_samp

No aliasing as bandwidth 10 Hz < 25/2; fs > fb.

>>> lp_samp(10,25,50,10)
>>> plt.show()

(Source code)

Now aliasing as bandwidth 15 Hz > 25/2; fs < fb.

>>> lp_samp(15,25,50,10)

sk_dsp_comm.sigsys.lp_tri(f, fb)

Triangle spectral shape function used by lp_samp().

Parameters:

fndarray containing frequency samples

fbthe bandwidth as a float constant

Returns:

xndarray of spectrum samples for a single triangle shape

Notes

This is a support function for the lowpass spectrum plotting function lp_samp().

Examples

>>> x = lp_tri(f, fb)

sk_dsp_comm.sigsys.m_seq(m)

Generate an m-sequence ndarray using an all-ones initialization.

Available m-sequence (PN generators) include m = 2,3,…,12, & 16.

Parameters:

mthe number of shift registers. 2,3, .., 12, & 16

Returns:

cndarray of one period of the m-sequence

Notes

The sequence period is 2**m - 1 (2^m - 1).

Examples

>>> c = m_seq(5)

sk_dsp_comm.sigsys.my_psd(x, NFFT=1024, Fs=1)

A local version of NumPy’s PSD function that returns the plot arrays.

A mlab.psd wrapper function that returns two ndarrays; makes no attempt to auto plot anything.

Parameters:

xndarray input signal

NFFTa power of two, e.g., 2**10 = 1024

Fsthe sampling rate in Hz

Returns:

Pxndarray of the power spectrum estimate

fndarray of frequency values

Notes

This function makes it easier to overlay spectrum plots because you have better control over the axis scaling than when using psd() in the autoscale mode.

Examples

>>> import matplotlib.pyplot as plt
>>> from numpy import log10
>>> from sk_dsp_comm import sigsys as ss
>>> x,b, data = ss.nrz_bits(10000,10)
>>> Px,f = ss.my_psd(x,2**10,10)
>>> plt.plot(f, 10*log10(Px))
>>> plt.ylabel("Power Spectral Density (dB)")
>>> plt.xlabel("Frequency (Hz)")
>>> plt.show()

(Source code)

sk_dsp_comm.sigsys.nrz_bits(n_bits, ns, pulse='rect', alpha=0.25, m=6)

Generate non-return-to-zero (NRZ) data bits with pulse shaping.

A baseband digital data signal using +/-1 amplitude signal values and including pulse shaping.

Parameters:

n_bitsnumber of NRZ +/-1 data bits to produce

nsthe number of samples per bit,

pulse_type‘rect’ , ‘rc’, ‘src’ (default ‘rect’)

alphaexcess bandwidth factor(default 0.25)

msingle sided pulse duration (default = 6)

Returns:

xndarray of the NRZ signal values

bndarray of the pulse shape

datandarray of the underlying data bits

Notes

Pulse shapes include ‘rect’ (rectangular), ‘rc’ (raised cosine), ‘src’ (root raised cosine). The actual pulse length is 2*M+1 samples. This function is used by BPSK_tx in the Case Study article.

Examples

>>> import matplotlib.pyplot as plt
>>> from sk_dsp_comm.sigsys import nrz_bits
>>> from numpy import arange
>>> x,b,data = nrz_bits(100, 10)
>>> t = arange(len(x))
>>> plt.plot(t, x)
>>> plt.ylim([-1.01, 1.01])
>>> plt.show()

(Source code)

sk_dsp_comm.sigsys.nrz_bits2(data, Ns, pulse='rect', alpha=0.25, M=6)

Generate non-return-to-zero (NRZ) data bits with pulse shaping with user data

A baseband digital data signal using +/-1 amplitude signal values and including pulse shaping. The data sequence is user supplied.

Parameters:

datandarray of the data bits as 0/1 values

Nsthe number of samples per bit,

pulse_type‘rect’ , ‘rc’, ‘src’ (default ‘rect’)

alphaexcess bandwidth factor(default 0.25)

Msingle sided pulse duration (default = 6)

Returns:

xndarray of the NRZ signal values

bndarray of the pulse shape

Notes

Pulse shapes include ‘rect’ (rectangular), ‘rc’ (raised cosine), ‘src’ (root raised cosine). The actual pulse length is 2*M+1 samples.

Examples

>>> import matplotlib.pyplot as plt
>>> from sk_dsp_comm.sigsys import nrz_bits2
>>> from sk_dsp_comm.sigsys import m_seq
>>> from numpy import arange
>>> x,b = nrz_bits2(m_seq(5),10)
>>> t = arange(len(x))
>>> plt.ylim([-1.01, 1.01])
>>> plt.plot(t,x)

(Source code)

sk_dsp_comm.sigsys.oa_filter(x, h, N, mode=0)

Overlap and add transform domain FIR filtering.

This function implements the classical overlap and add method of transform domain filtering using a length P FIR filter.

Parameters:

xinput signal to be filtered as an ndarray

hFIR filter coefficients as an ndarray of length P

NFFT size > P, typically a power of two

mode0 or 1, when 1 returns a diagnostic matrix

Returns:

ythe filtered output as an ndarray

y_matan ndarray whose rows are the individual overlap outputs.

Notes

y_mat is used for diagnostics and to gain understanding of the algorithm.

Examples

>>> import numpy as np
>>> from sk_dsp_comm.sigsys import oa_filter
>>> n = np.arange(0,100)
>>> x = np.cos(2*np.pi*0.05*n)
>>> b = np.ones(10)
>>> y = oa_filter(x,h,N)
>>> # set mode = 1
>>> y, y_mat = oa_filter(x,h,N,1)

sk_dsp_comm.sigsys.os_filter(x, h, N, mode=0)

Overlap and save transform domain FIR filtering.

This function implements the classical overlap and save method of transform domain filtering using a length P FIR filter.

Parameters:

xinput signal to be filtered as an ndarray

hFIR filter coefficients as an ndarray of length P

NFFT size > P, typically a power of two

mode0 or 1, when 1 returns a diagnostic matrix

Returns:

ythe filtered output as an ndarray

y_matan ndarray whose rows are the individual overlap outputs.

Notes

y_mat is used for diagnostics and to gain understanding of the algorithm.

Examples

>>> from numpy import arange, cos, pi, ones
>>> n = arange(0,100)
>>> x = cos(2*pi*0.05*n)
>>> b = ones(10)
>>> y = os_filter(x,h,N)
>>> # set mode = 1
>>> y, y_mat = os_filter(x,h,N,1)

sk_dsp_comm.sigsys.peaking(GdB, fc, Q=3.5, fs=44100.0)

A second-order peaking filter having GdB gain at fc and approximately and 0 dB otherwise.

The filter coefficients returns correspond to a biquadratic system function containing five parameters.

Parameters:

GdBLowpass gain in dB

fcCenter frequency in Hz

QFilter Q which is inversely proportional to bandwidth

fsSampling frquency in Hz

Returns:

bndarray containing the numerator filter coefficients

andarray containing the denominator filter coefficients

Examples

>>> import matplotlib.pyplot as plt
>>> import numpy as np
>>> from sk_dsp_comm.sigsys import peaking
>>> from scipy import signal
>>> b,a = peaking(2.0,500)
>>> f = np.logspace(1,5,400)
>>> w,H = signal.freqz(b,a,2*np.pi*f/44100)
>>> plt.semilogx(f,20*np.log10(abs(H)))
>>> plt.ylabel("Power Spectral Density (dB)")
>>> plt.xlabel("Frequency (Hz)")
>>> plt.show()

(Source code)

>>> b,a = peaking(-5.0,500,4)
>>> w,H = signal.freqz(b,a,2*np.pi*f/44100)
>>> plt.semilogx(f,20*np.log10(abs(H)))
>>> plt.ylabel("Power Spectral Density (dB)")
>>> plt.xlabel("Frequency (Hz)")

sk_dsp_comm.sigsys.pn_gen(n_bits, m=5)

Maximal length sequence signal generator.

Generates a sequence 0/1 bits of N_bit duration. The bits themselves are obtained from an m-sequence of length m. Available m-sequence (PN generators) include m = 2,3,…,12, & 16.

Parameters:

n_bitsthe number of bits to generate

mthe number of shift registers. 2,3, .., 12, & 16

Returns:

PNndarray of the generator output over N_bits

Notes

The sequence is periodic having period 2**m - 1 (2^m - 1).

Examples

>>> # A 15 bit period signal nover 50 bits
>>> PN = pn_gen(50,4)

sk_dsp_comm.sigsys.position_cd(Ka, out_type='fb_exact')

CD sled position control case study of Chapter 18.

The function returns the closed-loop and open-loop system function for a CD/DVD sled position control system. The loop amplifier gain is the only variable that may be changed. The returned system function can however be changed.

Parameters:

Kaloop amplifier gain, start with 50.

out_type‘open_loop’ for open loop system function

out_type‘fb_approx’ for closed-loop approximation

out_type‘fb_exact’ for closed-loop exact

Returns:

bnumerator coefficient ndarray

adenominator coefficient ndarray

Notes

With the exception of the loop amplifier gain, all other parameters are hard-coded from Case Study example.

Examples

>>> b,a = position_cd(Ka,'fb_approx')
>>> b,a = position_cd(Ka,'fb_exact')

sk_dsp_comm.sigsys.prin_alias(f_in, fs)

Calculate the principle alias frequencies.

Given an array of input frequencies the function returns an array of principle alias frequencies.

Parameters:

f_inndarray of input frequencies

fssampling frequency

Returns:

f_outndarray of principle alias frequencies

Examples

>>> # Linear frequency sweep from 0 to 50 Hz
>>> f_in = arange(0,50,0.1)
>>> # Calculate principle alias with fs = 10 Hz
>>> f_out = prin_alias(f_in,10)

sk_dsp_comm.sigsys.rc_imp(Ns, alpha, M=6)

A truncated raised cosine pulse used in digital communications.

The pulse shaping factor \(0< \alpha < 1\) is required as well as the truncation factor M which sets the pulse duration to be 2*M*Tsymbol.

Parameters:

Nsnumber of samples per symbol

alphaexcess bandwidth factor on (0, 1), e.g., 0.35

Mequals RC one-sided symbol truncation factor

Returns:

bndarray containing the pulse shape

Notes

The pulse shape b is typically used as the FIR filter coefficients when forming a pulse shaped digital communications waveform.

Examples

Ten samples per symbol and alpha = 0.35.

>>> import matplotlib.pyplot as plt
>>> from numpy import arange
>>> from sk_dsp_comm.sigsys import rc_imp
>>> b = rc_imp(10,0.35)
>>> n = arange(-10*6,10*6+1)
>>> plt.stem(n,b)
>>> plt.show()

(Source code)

sk_dsp_comm.sigsys.rect(t, tau)

Approximation to the rectangle pulse Pi(t/tau).

In this numerical version of Pi(t/tau) the pulse is active over -tau/2 <= t <= tau/2.

Parameters:

tndarray of the time axis

tauthe pulse width

Returns:

xndarray of the signal Pi(t/tau)

Examples

>>> import matplotlib.pyplot as plt
>>> from numpy import arange
>>> from sk_dsp_comm.sigsys import rect
>>> t = arange(-1,5,.01)
>>> x = rect(t,1.0)
>>> plt.plot(t,x)
>>> plt.ylim([0, 1.01])
>>> plt.show()

(Source code)

To turn on the pulse at t = 1 shift t.

>>> x = rect(t - 1.0,1.0)
>>> plt.plot(t,x)
>>> plt.ylim([0, 1.01])

sk_dsp_comm.sigsys.rect_conv(n, n_len)

The theoretical result of convolving two rectangle sequences.

The result is a triangle. The solution is based on pure analysis. Simply coded as opposed to efficiently coded.

Parameters:

nndarray of time axis

n_lenrectangle pulse duration

Returns:

yndarray of of output signal

Examples

>>> import matplotlib.pyplot as plt
>>> from numpy import arange
>>> from sk_dsp_comm.sigsys import rect_conv
>>> n = arange(-5,20)
>>> y = rect_conv(n,6)
>>> plt.plot(n, y)
>>> plt.show()

(Source code)

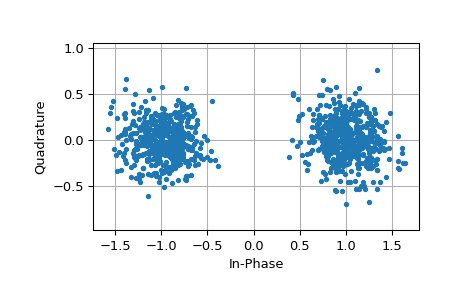

sk_dsp_comm.sigsys.scatter(x, ns, start)

Sample a baseband digital communications waveform at the symbol spacing.

Parameters:

xndarray of the input digital comm signal

nsnumber of samples per symbol (bit)

startthe array index to start the sampling

Returns:

xIndarray of the real part of x following sampling

xQndarray of the imaginary part of x following sampling

Notes

Normally the signal is complex, so the scatter plot contains clusters at points in the complex plane. For a binary signal such as BPSK, the point centers are nominally +/-1 on the real axis. Start is used to eliminate transients from the FIR pulse shaping filters from appearing in the scatter plot.

Examples

>>> import matplotlib.pyplot as plt
>>> from sk_dsp_comm import sigsys as ss
>>> x,b, data = ss.nrz_bits(1000,10,'rc')
>>> # Add some noise so points are now scattered about +/-1
>>> y = ss.cpx_awgn(x,20,10)
>>> yI,yQ = ss.scatter(y,10,60)
>>> plt.plot(yI,yQ,'.')
>>> plt.axis('equal')
>>> plt.ylabel("Quadrature")
>>> plt.xlabel("In-Phase")
>>> plt.grid()
>>> plt.show()

(Source code)

sk_dsp_comm.sigsys.simple_quant(x, b_tot, x_max, limit)

A simple rounding quantizer for bipolar signals having Btot = B + 1 bits.

This function models a quantizer that employs Btot bits that has one of three selectable limiting types: saturation, overflow, and none. The quantizer is bipolar and implements rounding.

Parameters:

xinput signal ndarray to be quantized

b_tottotal number of bits in the quantizer, e.g. 16

x_maxquantizer full-scale dynamic range is [-Xmax, Xmax]

Limit = Limiting of the form ‘sat’, ‘over’, ‘none’

Returns:

xqquantized output ndarray

Notes

The quantization can be formed as e = xq - x

Examples

>>> import matplotlib.pyplot as plt
>>> from matplotlib.mlab import psd
>>> import numpy as np
>>> from sk_dsp_comm import sigsys as ss
>>> n = np.arange(0,10000)
>>> x = np.cos(2*np.pi*0.211*n)
>>> y = ss.sinusoid_awgn(x,90)
>>> Px, f = psd(y,2**10,Fs=1)
>>> plt.plot(f, 10*np.log10(Px))
>>> plt.ylim([-80, 25])
>>> plt.ylabel("Power Spectral Density (dB)")
>>> plt.xlabel(r'Normalized Frequency $\omega/2\pi$')
>>> plt.show()

(Source code)

>>> yq = ss.simple_quant(y,12,1,'sat')
>>> Px, f = psd(yq,2**10,Fs=1)
>>> plt.plot(f, 10*np.log10(Px))
>>> plt.ylim([-80, 25])
>>> plt.ylabel("Power Spectral Density (dB)")
>>> plt.xlabel(r'Normalized Frequency $\omega/2\pi$')
>>> plt.show()

sk_dsp_comm.sigsys.simple_sa(x, NS, NFFT, fs, NAVG=1, window='boxcar')

Spectral estimation using windowing and averaging.

This function implements averaged periodogram spectral estimation estimation similar to the NumPy’s psd() function, but more specialized for the windowing case study of Chapter 16.

Parameters:

xndarray containing the input signal

NSThe subrecord length less zero padding, e.g. NS < NFFT

NFFTFFT length, e.g., 1024 = 2**10

fssampling rate in Hz

NAVGthe number of averages, e.g., 1 for deterministic signals

windowhardcoded window ‘boxcar’ (default) or ‘hanning’

Returns:

fndarray frequency axis in Hz on [0, fs/2]

Sxndarray the power spectrum estimate

Notes

The function also prints the maximum number of averages K possible for the input data record. # For a list of the available windows see: # https://docs.scipy.org/doc/scipy/reference/signal.windows.html#module-scipy.signal.windows

Examples

>>> import matplotlib.pyplot as plt
>>> import numpy as np
>>> from sk_dsp_comm import sigsys as ss
>>> n = np.arange(0,2048)
>>> x = np.cos(2*np.pi*1000/10000*n) + 0.01*np.cos(2*np.pi*3000/10000*n)
>>> f, Sx = ss.simple_sa(x,128,512,10000)
>>> plt.plot(f, 10*np.log10(Sx))
>>> plt.ylim([-80, 0])
>>> plt.xlabel("Frequency (Hz)")
>>> plt.ylabel("Power Spectral Density (dB)")
>>> plt.show()

(Source code)

With a hanning/hann window.

>>> f, Sx = ss.simple_sa(x,256,1024,10000,window='hann')
>>> plt.plot(f, 10*np.log10(Sx))
>>> plt.xlabel("Frequency (Hz)")
>>> plt.ylabel("Power Spectral Density (dB)")
>>> plt.ylim([-80, 0])

sk_dsp_comm.sigsys.sinusoid_awgn(x, SNRdB)

Add white Gaussian noise to a single real sinusoid.

Input a single sinusoid to this function and it returns a noisy sinusoid at a specific SNR value in dB. Sinusoid power is calculated using np.var.

Parameters:

xInput signal as ndarray consisting of a single sinusoid

SNRdBSNR in dB for output sinusoid

Returns:

yNoisy sinusoid return vector

Examples

>>> # set the SNR to 10 dB
>>> n = arange(0,10000)
>>> x = cos(2*pi*0.04*n)
>>> y = sinusoid_awgn(x,10.0)

sk_dsp_comm.sigsys.soi_snoi_gen(s, SIR_dB, N, fi, fs=8000)

Add an interfering sinusoidal tone to the input signal at a given SIR_dB.

The input is the signal of interest (SOI) and number of sinsuoid signals not of interest (SNOI) are addedto the SOI at a prescribed signal-to- intereference SIR level in dB.

Parameters:

sndarray of signal of SOI

SIR_dBinterference level in dB

NTrim input signal s to length N + 1 samples

findarray of intereference frequencies in Hz

fssampling rate in Hz, default is 8000 Hz

Returns:

rndarray of combined signal plus intereference of length N+1 samples

Examples

>>> # load a speech ndarray and trim to 5*8000 + 1 samples
>>> fs,s = from_wav('OSR_us_000_0030_8k.wav')
>>> r = soi_snoi_gen(s,10,5*8000,[1000, 1500])

sk_dsp_comm.sigsys.splane(b, a, auto_scale=True, size=[-1, 1, -1, 1])

Create an s-plane pole-zero plot.

As input the function uses the numerator and denominator s-domain system function coefficient ndarrays b and a respectively. Assumed to be stored in descending powers of s.

Parameters:

bnumerator coefficient ndarray.

adenominator coefficient ndarray.

auto_scaleTrue

size[xmin,xmax,ymin,ymax] plot scaling when scale = False

Returns:

(M,N)tuple of zero and pole counts + plot window

Notes

This function tries to identify repeated poles and zeros and will place the multiplicity number above and to the right of the pole or zero. The difficulty is setting the tolerance for this detection. Currently it is set at 1e-3 via the function signal.unique_roots.

Examples

>>> # Here the plot is generated using auto_scale
>>> splane(b,a)
>>> # Here the plot is generated using manual scaling
>>> splane(b,a,False,[-10,1,-10,10])

sk_dsp_comm.sigsys.sqrt_rc_imp(Ns, alpha, M=6)

A truncated square root raised cosine pulse used in digital communications.

The pulse shaping factor 0< alpha < 1 is required as well as the truncation factor M which sets the pulse duration to be 2*M*Tsymbol.

Parameters:

Nsnumber of samples per symbol

alphaexcess bandwidth factor on (0, 1), e.g., 0.35

Mequals RC one-sided symbol truncation factor

Returns:

bndarray containing the pulse shape

Notes

The pulse shape b is typically used as the FIR filter coefficients when forming a pulse shaped digital communications waveform. When square root raised cosine (SRC) pulse is used generate Tx signals and at the receiver used as a matched filter (receiver FIR filter), the received signal is now raised cosine shaped, this having zero intersymbol interference and the optimum removal of additive white noise if present at the receiver input.

Examples

>>> # ten samples per symbol and alpha = 0.35
>>> import matplotlib.pyplot as plt
>>> from numpy import arange
>>> from sk_dsp_comm.sigsys import sqrt_rc_imp
>>> b = sqrt_rc_imp(10,0.35)
>>> n = arange(-10*6,10*6+1)
>>> plt.stem(n,b)
>>> plt.show()

(Source code)

sk_dsp_comm.sigsys.step(t)

Approximation to step function signal u(t).

In this numerical version of u(t) the step turns on at t = 0.

Parameters:

tndarray of the time axis

Returns:

xndarray of the step function signal u(t)

Examples

>>> import matplotlib.pyplot as plt
>>> from numpy import arange
>>> from sk_dsp_comm.sigsys import step
>>> t = arange(-1,5,.01)
>>> x = step(t)
>>> plt.plot(t,x)
>>> plt.ylim([-0.01, 1.01])
>>> plt.show()

(Source code)

To turn on at t = 1, shift t.

>>> x = step(t - 1.0)
>>> plt.ylim([-0.01, 1.01])
>>> plt.plot(t,x)

sk_dsp_comm.sigsys.ten_band_eq_filt(x, GdB, Q=3.5)

Filter the input signal x with a ten-band equalizer having octave gain values in ndarray GdB.

The signal x is filtered using octave-spaced peaking filters starting at 31.25 Hz and stopping at 16 kHz. The Q of each filter is 3.5, but can be changed. The sampling rate is assumed to be 44.1 kHz.

Parameters:

xndarray of the input signal samples

GdBndarray containing ten octave band gain values [G0dB,…,G9dB]

QQuality factor vector for each of the NB peaking filters

Returns:

yndarray of output signal samples

Examples

>>> # Test with white noise
>>> w = randn(100000)
>>> y = ten_band_eq_filt(x,GdB)
>>> psd(y,2**10,44.1)

sk_dsp_comm.sigsys.ten_band_eq_resp(GdB, Q=3.5)

Create a frequency response magnitude plot in dB of a ten band equalizer using a semilogplot (semilogx()) type plot

Parameters:

GdBGain vector for 10 peaking filters [G0,…,G9]

QQuality factor for each peaking filter (default 3.5)

Returns:

Nothingtwo plots are created

Examples

>>> import matplotlib.pyplot as plt
>>> from sk_dsp_comm import sigsys as ss
>>> ss.ten_band_eq_resp([0,10.0,0,0,-1,0,5,0,-4,0])
>>> plt.show()

(Source code)

sk_dsp_comm.sigsys.to_wav(filename, rate, x)

Write a wave file.

A wrapper function for scipy.io.wavfile.write that also includes int16 scaling and conversion. Assume input x is [-1,1] values.

Parameters:

filenamefile name string

ratesampling frequency in Hz

Returns:

Nothingwrites only the *.wav file

Examples

>>> to_wav('test_file.wav', 8000, x)

sk_dsp_comm.sigsys.tri(t, tau)

Approximation to the triangle pulse Lambda(t/tau).

In this numerical version of Lambda(t/tau) the pulse is active over -tau <= t <= tau.

Parameters:

tndarray of the time axis

tauone half the triangle base width

Returns:

xndarray of the signal Lambda(t/tau)

Examples

>>> import matplotlib.pyplot as plt
>>> from numpy import arange
>>> from sk_dsp_comm.sigsys import tri
>>> t = arange(-1,5,.01)
>>> x = tri(t,1.0)
>>> plt.plot(t,x)
>>> plt.show()

(Source code)

To turn on at t = 1, shift t.

>>> x = tri(t - 1.0,1.0)
>>> plt.plot(t,x)

sk_dsp_comm.sigsys.unique_cpx_roots(rlist, tol=0.001)

The average of the root values is used when multiplicity is greater than one.

Mark Wickert October 2016

sk_dsp_comm.sigsys.upsample(x, L)

Upsample by factor L

Insert L - 1 zero samples in between each input sample.

Parameters:

xndarray of input signal values

Lupsample factor

Returns:

yndarray of the output signal values

Examples

>>> y = upsample(x,3)

sk_dsp_comm.sigsys.zplane(b, a, auto_scale=True, size=2, detect_mult=True, tol=0.001)

Create an z-plane pole-zero plot.

Create an z-plane pole-zero plot using the numerator and denominator z-domain system function coefficient ndarrays b and a respectively. Assume descending powers of z.

Parameters:

bndarray of the numerator coefficients

andarray of the denominator coefficients

auto_scalebool (default True)

sizeplot radius maximum when scale = False

Returns:

(M,N)tuple of zero and pole counts + plot window

Notes

This function tries to identify repeated poles and zeros and will place the multiplicity number above and to the right of the pole or zero. The difficulty is setting the tolerance for this detection. Currently it is set at 1e-3 via the function signal.unique_roots.

Examples

>>> # Here the plot is generated using auto_scale
>>> zplane(b,a)
>>> # Here the plot is generated using manual scaling
>>> zplane(b,a,False,1.5)
